The challenge:

Designing a deterministic, version-controlled rule engine to handle complex multi-layer scoring logic.

The Constraints:

• Pure JSON storage (Database and Agnostic).
• Strict integrity validation at load time.
• Must prevent circular logic in dependencies.
• JSON setup stays human readable

The Solution:

I opted for a Normalized (Flat) Architecture to avoid the complexity of deeply nested configurations. By treating the JSON like a relational database, we decouple the structure from the logic.

{
  version: string,
  // ℹ️ Subsystems act as grouping tags
  subsystems: { id: string, name: string, ... }[],
  // ℹ️ Rules refer to subsystems via ID (Relational style)
  rules: {
    id: string,
    subsystemId: string,
    operation: { action: 'add' | 'multiply', ... },
    dependency: string // ID of the variable/input it reads from
  }[],
}

With this normalized structure, it is possible to construct a Directed Acyclic Graph (DAG) and apply a Topological Sort. This allows the engine to automatically determine the correct execution order of isolated subsystems based on their data dependencies.

Example: If Subsystem A depends on Subsystem B, and B depends on Subsystem C, the Topological Sort resolves the execution pipeline to: C → B → A.

Key Architectural Benefits:

• Cycle Detection: We can detect circular dependencies (A -> B -> A) at load time and throw a critical error, ensuring the database always contains a valid configuration.
• Determinism: Since every subsystem is a Pure Function, and the JSON is versioned, we can re-compute historical inputs with their specific rule-set version to get the exact same result every time.

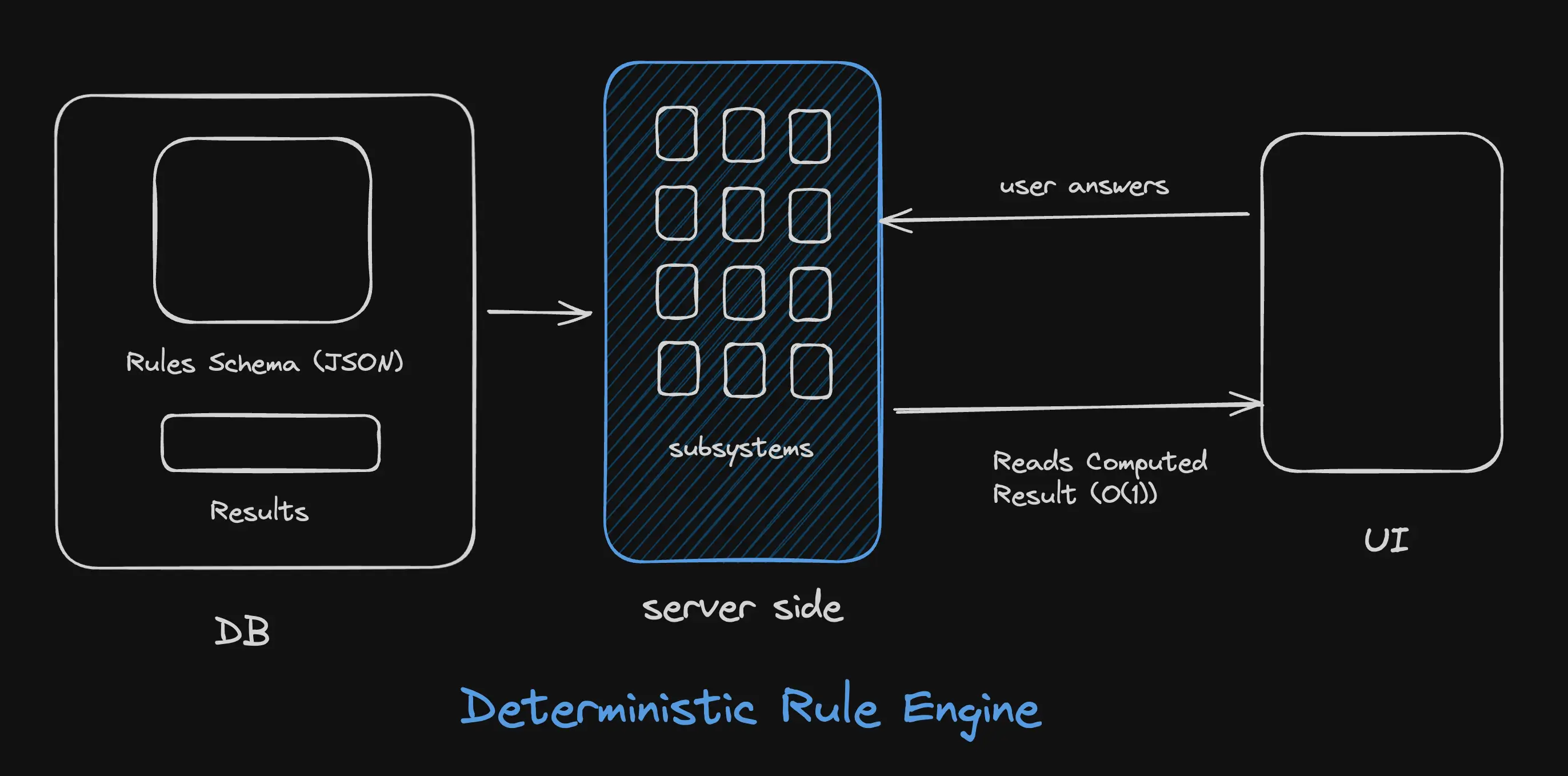

The Blueprint:
